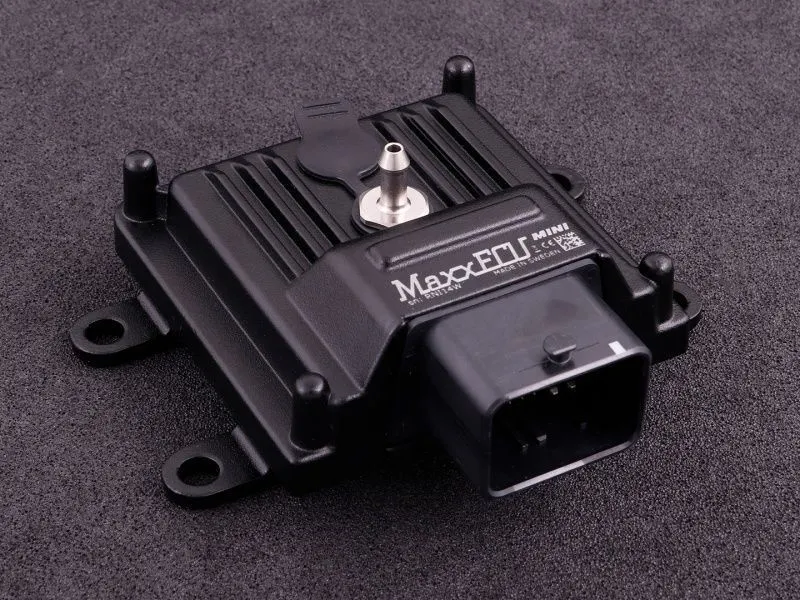

Calculator Standalone MaxxECU MINI.
Advanced entry - level engine control system for up to 4 sequential cylinders. Up to 8 in wasted spark.
Faster and easier tuning with the built - in MAP - sensor up to 3 bar / 43.5 psi of boost.
Get started faster with the easy - to - use MTune PC - software
Selected features:
Waterproofed aluminium case
Boost control (triple stage)
Traction control
Internal loggings
Shift - cut and launch
Advanced warning system
Launch control
Built - in MAP - sensor
4 injector outputs (high impedance)
4 ignition outputs
4 extra outputs (GPO)
2 extra analog inputs (0 - 5V)
2 extra digital inputs (HALL)
CAN bus
Target engines for MaxxECU MINI
All 1 - 4,6 and 8 cylinder engines
Up to 4 cylinders fully sequentially (using a digital input as HOME)
Up to 8 cylinders in wasted spark
MaxxECU MINI inputs:
Intake air temperature sensor (IAT)
Coolant temperature sensor (CLT)
Throttle position sensor (TPS)
1 trigger input (VR/HALL). Automatic trigger level detection
2 digital inputs used for example for speed sensors (Hall) or switches
2 extra 0 - 5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
Built - in 400kPa MAP - sensor for up to 3bar/43PSI of boost
MaxxECU MINI outputs:
4 injectors outputs. High impedance only
4 ignition outputs.5V signal to drive ignition modules, CDI units or coils
4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1 - 3 (2A), GPO 8 (2A)
MaxxECU MINI technical:
CAN bus for expansion modules, OEM vehicle CAN, OBDII
USB communication for tuning with MTune
8MB memory for internal logging, up to 1000Hz
Supply voltage 8 - 22V
ARM Cortex - M3 120MHz main processor
Resolution on ignition: 0.1 degrees
Resolution on injectors: 0.001 ms
Updates the fuel and ignition calculations 2000 times per second
The fastest PC communication on the market
85x120x43mm excluding protruding connectors
Weight: 245g (ECU only)
Waterproofed aluminium case
| ID produs |
#62248 |
| Producator |
Altele
|
| Garantie |
12 luni |
| Stoc |
IN STOC |
| Greutate |
1 kg. |
| Cod produs |
MAXXECU-MINI-1998 |
| Cod echivalent |
- |
Compatibil cu autoturisme
Produs universal - compatibil cu toate tipurile de masini
