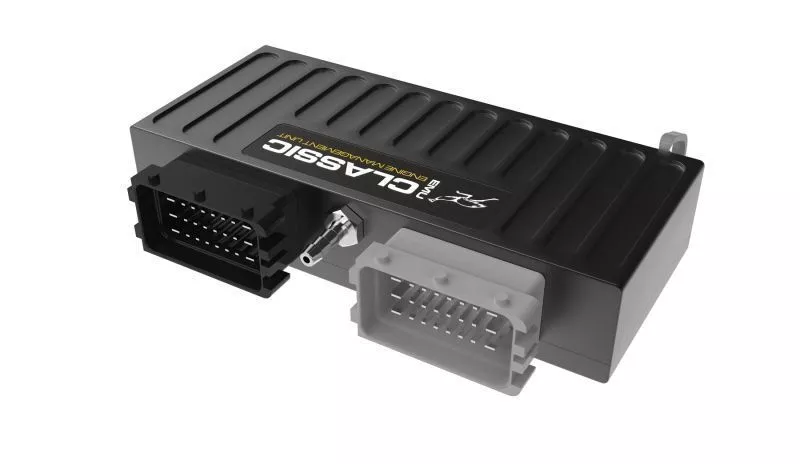

Stand alone Ecumaster EMU CLASSIC - ECUC

Ecumaster EMU Classic este versiunea noua a ECU - ului EMU, fiind inplementat functii precum clapeta de acceleratie electronica si control VVT.
Specificatii:
Enclosure protection IP 60
Temperature range AECQ100 GRADE3 ( - 40 to +85C)
Reverse battery protection Yes, internal
Operating voltage 6 - 20V, immunity to transients according to ISO 7637
Operating current (ECU) < 0.5A
Size (mm) 155x120x45
Weight (g) 500
Connectors 2 x 24 FCI Automotive connector
Communication USB (with PC client software), serial or CAN
OUTPUTS
Injector outputs 6 protected outputs 5A, low side
Ignition outputs 6 outputs 7A(15A peak) (passive&active coils supported)
Aux outputs 6 protected outputs 5A, low side
Stepper outputs Full bridge up to 0.8A, can be used as separate outputs
WBO heater Protected low side up to 5A
+5V 1
CAN BUS Yes, with additional module
Serial Yes
INPUTS
Analog inputs 7,10Bits,0 - 5V,4 additional analog inputs with CAN module
EGT inputs 2 for K - Type thermocouple
Knock sensor 2
Oxygen sensor LSU 4.2 or Narrow band
Trigger inputs 3 (primary,2 cams) Hall / VR software selectable
VSS 1 (Hall / VR)
Flex Fuel Using CAM#2 or VSS
SENSORS
Temperature sensors IAT, CLT, Oil temperature (user defined characteristic), AC evap temperature
Pressure sensor MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor
Oxygen sensor LSU 4.2 (built in controller), Narrow band, external WBO controllers
Speed Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)
FUELING
Injectors Up to 6 Hi Z injectors (sequential)
Battery compensation User defined, wizard for popular injectors
Fueling strategies VE based speed density, Alpha N
Air charge temp. Based on IAT and CLT
VE table 2 tables 16?20 (Load x RPM), resolution of 0.1%
Individual cylinder trim Yes
Staged injection Yes
Additional correction EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor
Lambda based real time correction Using Lambda/AFR target table
Acc. / Deceleration enrichment Yes
IGNITION
Ignition outputs 6 for passive and active coils (software selectable)
Supported triggers N - 1, N - 2, N - 3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ
Ignition angle table 2 tables 16?20 (Load x RPM), resolution of 0.5 Deg
Per cylinder trim Yes
Dwell time battery compensation Used defined, wizard for popular coils
Odd fire compatibility Application dependent
Additional correction CLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment
KNOCK SENSING
Channels 2
Resonant frequency range 1 - 20kHz,3rd order AAF
Sampling Ignition event driven, knock window
Actions Ignition retard, fuel enrichment, dashboard indication
IDLE CONTROL
Control type PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cut
Control strategy Open / Close loop, ignition angle control
VE correction Yes, for Alpha - N
Corrections AC clutch, coolant fan, analog input
BOOST CONTROL
Boost ref and target tables 2 sets 16?20 (TPS vs RPM)
Control strategies Open / Closed loop (PID based)
Corrections Gear, VSS, IAT, EGT
DRIVE BY WIRE1
Control strategy Advanced 3D PID + static friction compensation
Supported throttles All with DC motor and current requirement lower than 6A Wizard for 28 popular electronic throttles
PPS to throttle position characteristic 3D table
BLIP support Yes
ALS support Yes
TRACTION CONTROL
TC strategy Delta RPM, gear compensation
Torque reduction Spark cut using 3D table (16?20)
Sensitivity control 10 position rotary switch
VARIABLE VALVE TIMING
Supported systems VVTi, MiVec, VANOS, Double Vanos
Number of camshafts 2
Control strategy PID based closed loop, CAM angle target tables 12?12
FLEX FUEL
Ethanol content measurement Yes
Fuel temperature measurement Yes
Tables blending VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup
Fuel temperature PW correction Yes
SPORT
ALS 2 independent ALS setting, DBW support
Shift light Per gear shift light
Launch control Yes
Gear cut Yes (Open loop), DBW blip supported Source: Switch, load cell, CAN
Pit limiter Yes
Rolling anti lag Yes
ENGINE PROTECTION
Fail safe values for critical sensors Yes
Dashboard indication of failures Yes, user defined
Over temperature engine protection Yes, user defined, RPM limit
Low oil pressure protection Yes, user defined, shut off
Fuel pressure protection Yes, fuel dose compensation, RPM limit, engine shut off
High exhaust temperature Alarm, per cylinder fuel trim, boost limit
CAN BUS2
CAN standard 2.0A 125,250,500,1000 kBps 11,29 bits
Supported CAN Dashes3 ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported OEM CAN streams3 BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST
OTHER
Unused injection outputs can be used as AUX output Yes
Unused ignition outputs can be used as AUX output Only for some functions
Output functions Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer
Password protection Yes,2 levels
Timers Fuel, Ignition, Boost, timers controlled by virtual outputs
Serial dashboard support AIM, RaceTechnology
Autotune Yes
Built in trigger scope Yes
Logging Real time logging to PC computer, logging on external loggers (serial / CAN)
1External module required

2External module required

3Supported channels are application dependent

ID produs	#9113
Producator	ECUMASTER
Garantie	12 luni
Stoc	IN STOC
Greutate	1 kg.
Cod produs	ECUC
Cod echivalent	-
